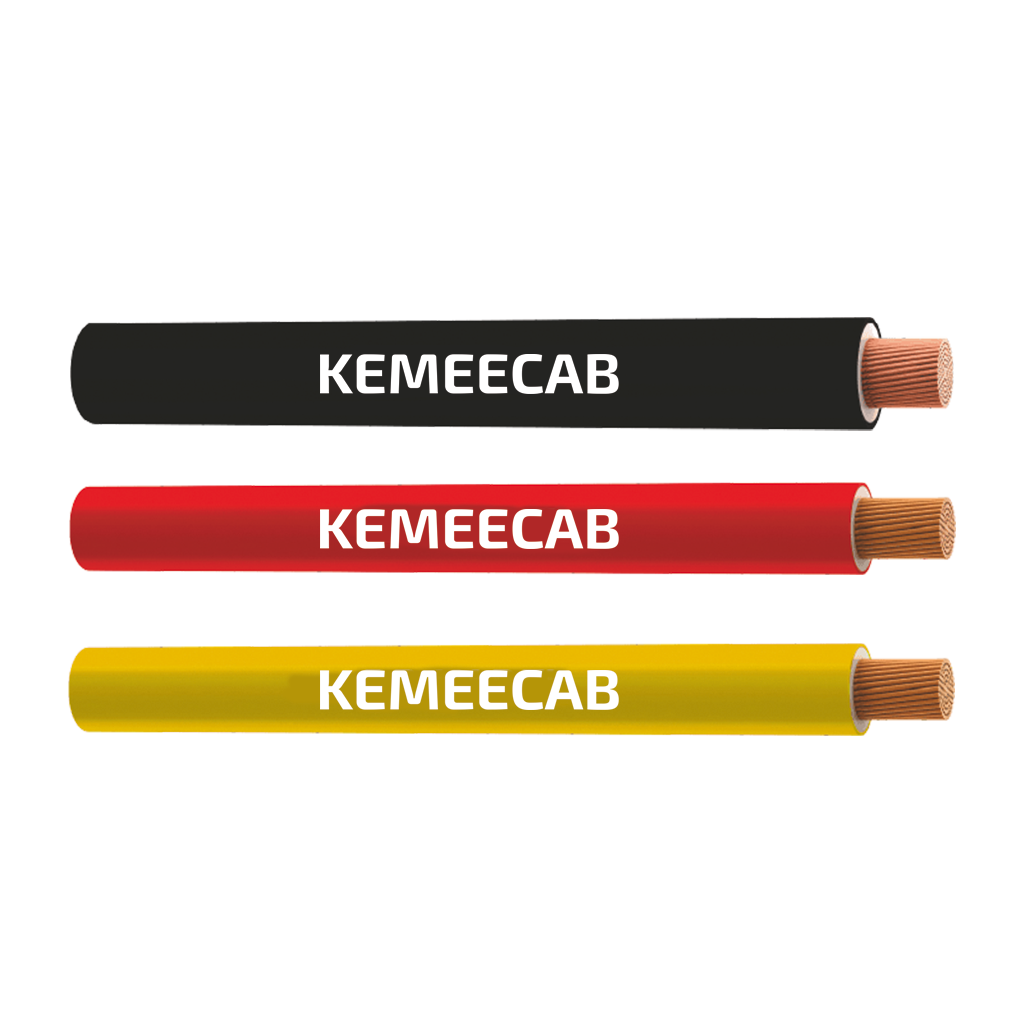

House Wires
Features
- High Flame Retardant Properties
- Excellent resistant to moisture, abrasion, grace, oil
- Long Life
- Excellent mechanical & electrical properties
- Steam and boiling water resistant
- Non Corrosive and non toxic insulation
Technical Data
- Approvals : IS 694 marked latest,
- Voltage Grade : Up to and including 1100V
- Standard lenght : coils 45m,90m,180m
- Conductor : Annealed flexible EC Copper class-2 or class-5 Conductor as per IS:8130
- Insulation : FR or FR-LSH PVC Insulation as per IS 5831
- Colour : Red, yellow, Blue, Black, Brown, Grey, Orange, White, Green, Yellow/green or as per customer requirement
Application
Suitable for wiring in all types of residential and commercial infrastructure. Also Suitable for use in conduit and for fixed, protected installation particularly suitable for wiring in fire and explosion prone areas, chemical factories, densely wired areas, public buildings, schools, hospitals, commercial complexes, theatres, etc.
| SINGLE CORE PVC INSULATED UNSHEATHED ELECTROlYTIC COPPER WIRES UP TO 1100V AS PER IS 694 : 2010 |
|||||
|---|---|---|---|---|---|
| Nominal c/s | Counductor | Nominal | Approx. | Current | Max. D/C |
| Area Of | Construction | Insulation | Overall. | Rating | Resistance Per |
| Counductor In | no./mm | Thickness | Dia. In . | At 40 °C In | km. @ 20 °C |
| sq.mm. | In mm | mm | Amps(#) | Ohm./km(*) | |
| 0.50 | 16/0.20** | 0.6 | 2.2 | 4 | 39.0 |
| 0.75 | 24/0.20** | 0.6 | 2.5 | 7 | 26.0 |
| 1.00 | 14/0.30* | 0.7 | 2.7 | 11 | 18.1 |
| 1.50 | 22/0.30* | 0.7 | 3.0 | 14 | 12.1 |
| 2.50 | 36/0.30* | 0.8 | 3.5 | 18 | 7.41 |
| 4.00 | 56/0.30** | 0.8 | 4.2 | 26 | 4.95 |
| Additional FR-LSH Properties | ||
|---|---|---|
| Test | Test Method | Values |
| Limited Oxygen Index | IS 10810 P – 58 | > 29% |
| Limited Temperature Index | IS 10810 P – 64 | > 250 °C |
| Smoke Density (Light Absorption) | IS 13360 P – 6/Sec 9 | < 60% |
| Acid Gas Generation | IS 10810 P – 59 | < 20% |
| SINGLE CORE PVC INSULATED UNSHEATHED ELECTROlYTIC COPPER WIRES UP TO 1100V AS PER IS 694 : 2010 |
|||||
|---|---|---|---|---|---|
| Nominal c/s | Counductor | Nominal | Approx. | Current | Max. D/C |
| Area Of | Construction | Insulation | Overall. | Rating | Resistance Per |
| Counductor In | no./mm | Thickness | Dia. In . | At 40 °C In | km. @ 20 °C |
| sq.mm. | In mm | mm | Amps(#) | Ohm./km(*) | |
| 0.50 | 16/0.20** | 0.6 | 2.2 | 4 | 39.0 |
| 0.75 | 24/0.20** | 0.6 | 2.5 | 7 | 26.0 |
| 1.00 | 14/0.30* | 0.7 | 2.7 | 11 | 18.1 |
| 1.50 | 22/0.30* | 0.7 | 3.0 | 14 | 12.1 |
| 2.50 | 36/0.30* | 0.8 | 3.5 | 18 | 7.41 |
| 4.00 | 56/0.30** | 0.8 | 4.2 | 26 | 4.95 |
* Class-2 Flexible copper Conductor As Per IS 8130
** Class-5 Flexible copper Conductor As Per IS 8130
